Vision-Guided Robotic Assembly of Precision Gearboxes

Real-world parts have positional variation from manufacturing tolerances

Vision Guidance Point Cloud 3D Scanning Assembly

300M Points

Full assembly volume coverage with massive point clouds

Dual Matching Modes

Point cloud ?CAD and Point cloud ?Point cloud

Collision Avoidance

Automatic path generation prevents gear tooth damage

Zero Manual Teaching

Assembly trajectories auto-generated from scan data

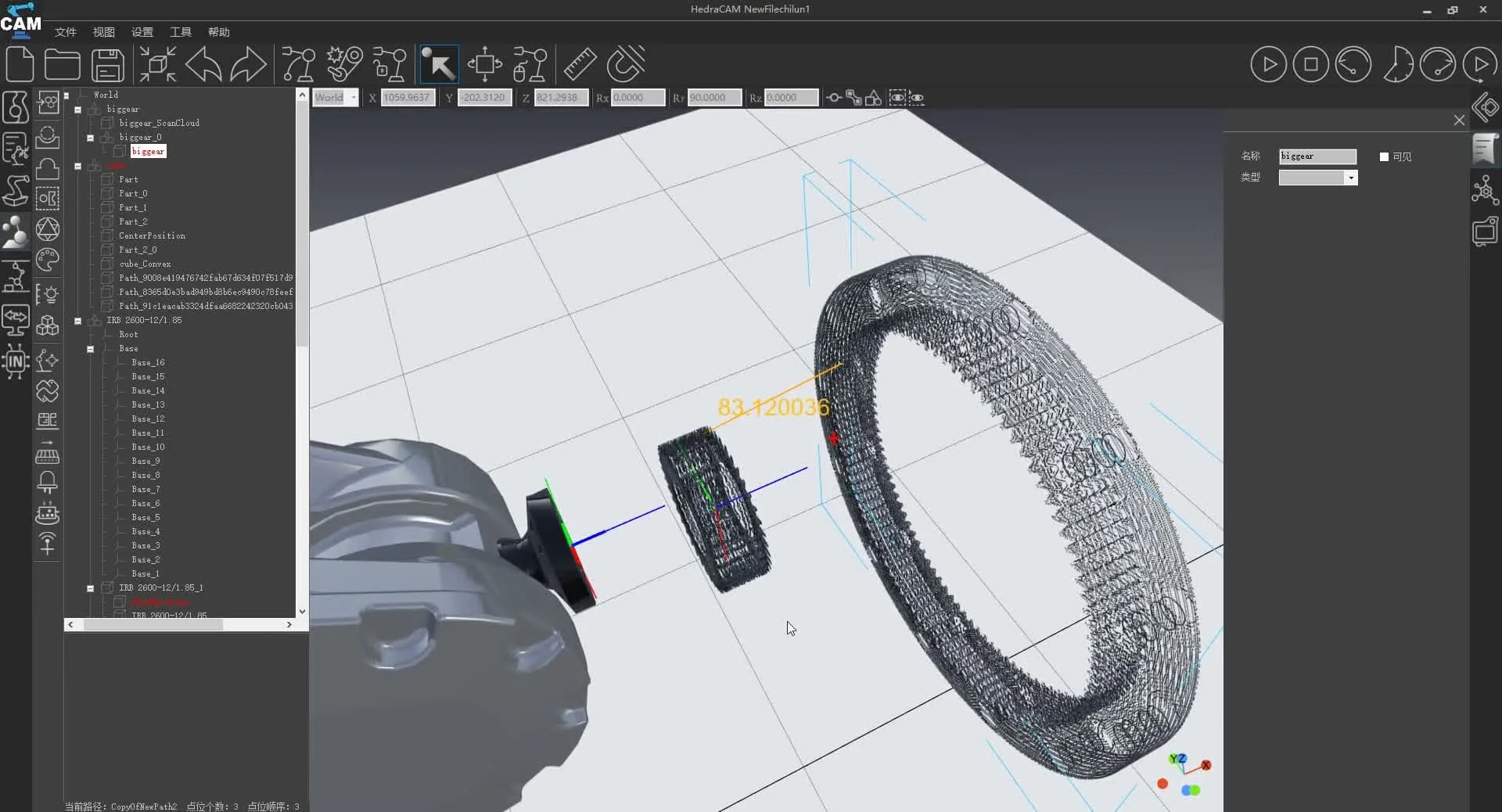

Application overview ?HedraCAM robotic gearbox assembly solution

The Solution

Vision-guided system captures real-world part positions using 3D camera scanning
Supports multiple matching modes: point cloud to 3D CAD, or point cloud to point cloud
Handles up to 300 million point clouds for complete assembly volume verification
Automatic collision avoidance generates safe robot assembly trajectories without manual waypoint teaching

"Vision guidance lets us assemble parts with manufacturing variation we never thought possible."

?Automation Lead, Precision Gearbox Manufacturer
