5-Axis Laser Processing Module

Pentacut is a high-dimensional 3D trajectory planning module specifically designed for 5-axis laser processing machines, deeply integrating cutting-edge processes such as laser cutting, high-speed drilling, and precision dispensing, supporting dozens of mainstream 5-axis machine tool configurations worldwide. With forward-looking algorithms and expert-level process accumulation, Pentacut is widely used in aerospace, automotive panels, composite materials, and high-end manufacturing.

01

Core Technical Advantages Intelligent Drive, Precise Execution

• Guided Full-Process Architecture
  Continuing HedraCAM's clean and clear guided interface, complex 5-axis programming steps are broken down into standardized, visualized operation nodes. From model import to post-processing output, every step comes with guidance prompts, greatly lowering the technical barrier for 5-axis programming.
• Deep Adaptation to Support for Multiple Motion Structures
  To meet processing requirements across different industries, the module supports various complex 5-axis/6-axis motion structures:
  XYZ+AC / AB: Specifically designed for body panel and aviation skin sheet metal laser cutting.
  XYZ+BC: Optimized for 5-axis precision drilling and special-angle cutting.
  XYZ+AC+U: Provides professional tube 5-axis synchronized cutting solutions.
  Multi XYZ+AB: Supports composite process machining and multi-head linkage.
• Intelligent Algorithms and AI Expansion
  Intelligent Feature Recognition: Quickly identifies 3D model features, automatically generating optimal cutting paths.
  Automatic Posture Optimization: Algorithms automatically optimize high-dimensional machining postures with interactive fine-tuning support.
  AI Auto-Programming: For fixed processes and similar products, can iterate into AI unmanned intelligent programming system.

Visual Node Workflow

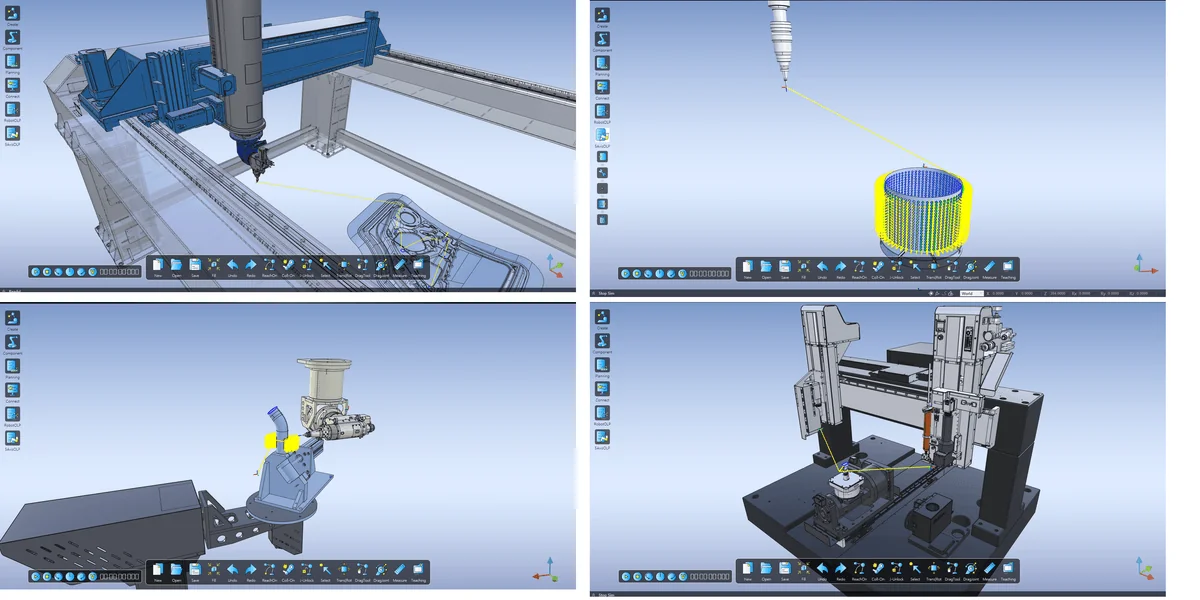

Support for Multiple Motion Structures

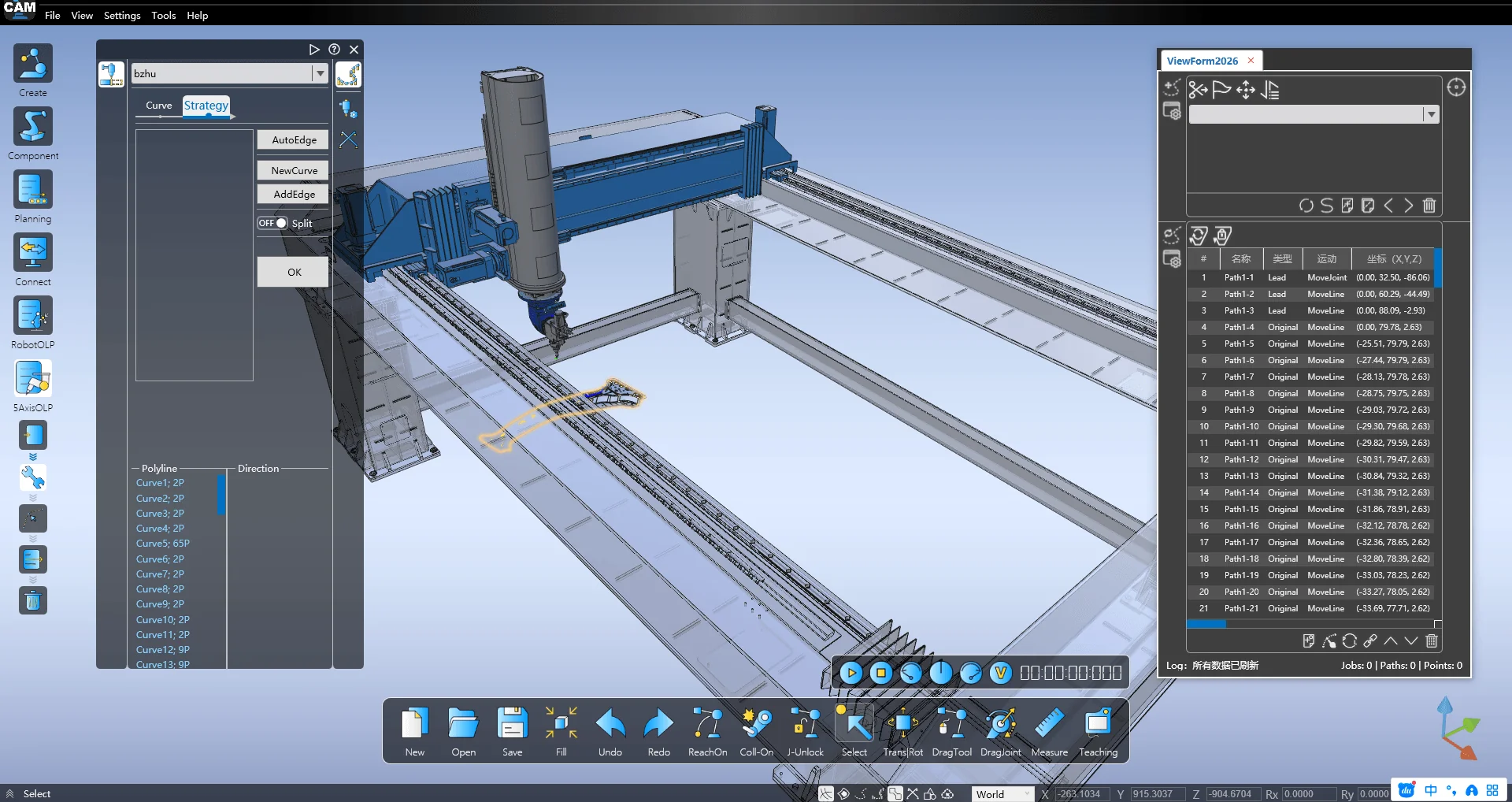

Gantry 5-Axis Laser Cutting

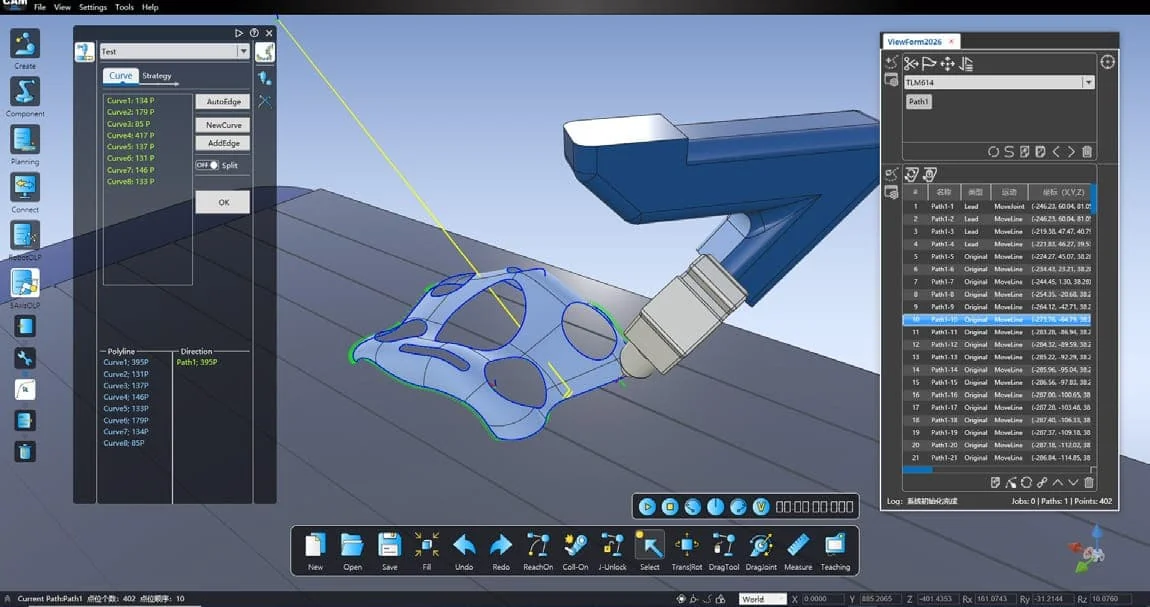

Intelligent 3D Feature Recognition

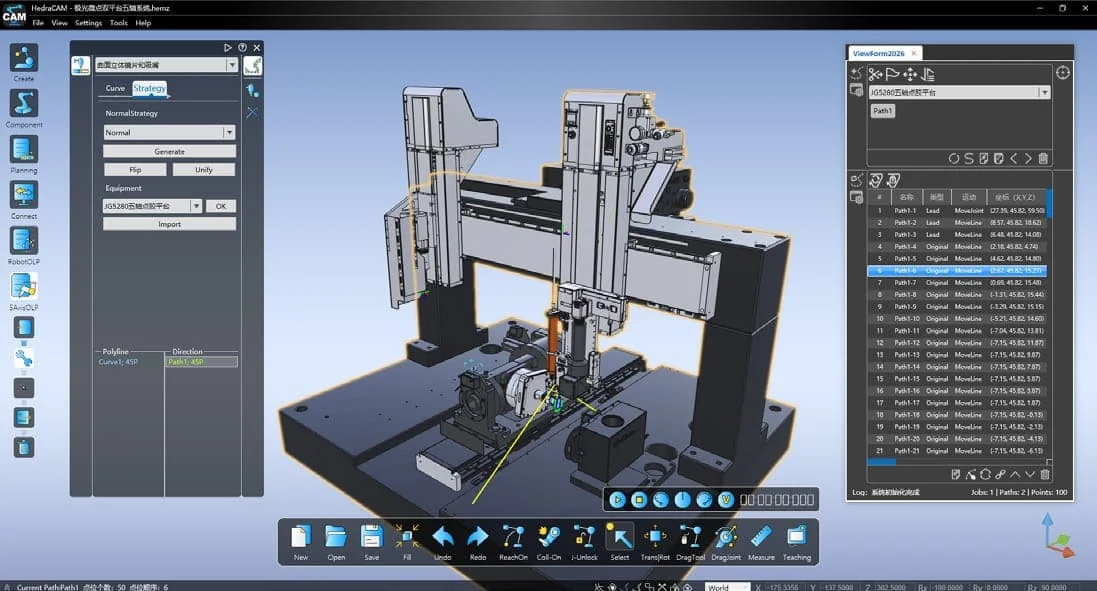

Multi-Head Co-Axis Multi-Nozzle Linkage

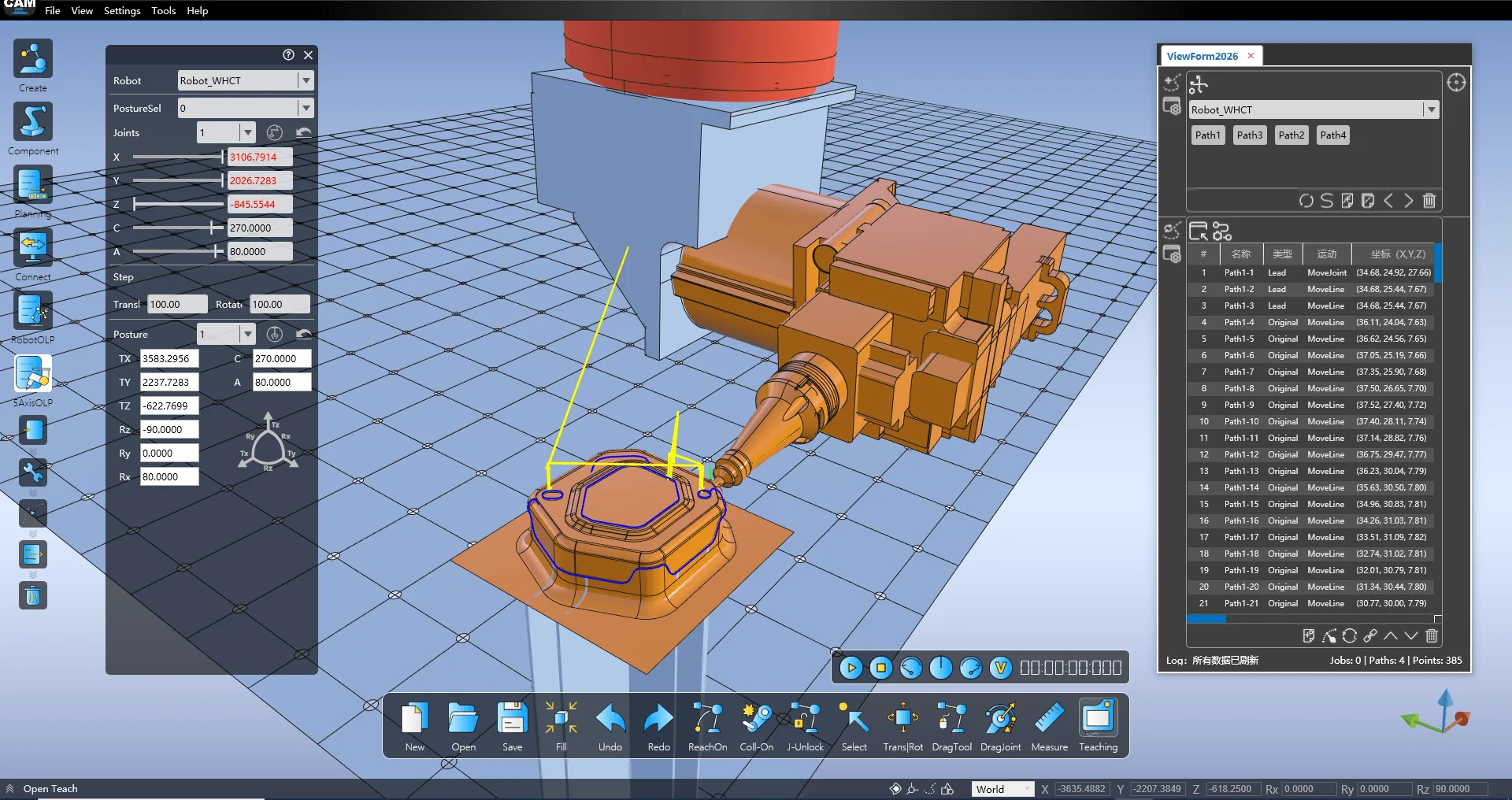

Collision Posture Auto-Optimization

Guided Operation 5-Axis Linkage AI Programming Feature Recognition

02

Expert-Level Process Support

• Powerful Expert Process Library
  Built-in industry-leading expert process parameters, supporting automatic optimization of cutting speed, power, and focal position based on different materials and thicknesses. An open Excel template customization interface allows enterprises to output proprietary process experience synchronously.
• Ultimate Simulation and Safety Detection
  Built-in high-precision collision detection algorithms verify safety clearances between workpieces, fixtures, and machine structures in real time. Axis over-travel checks, path preview, and NC program verification functions avoid all risks before actual machining.

Welding Parameters

Lead-In/Out Config

Process Type Selection

Machining Parameters

Expert Library Collision Detection Safety Protection Parameter Optimization
