Welding Process

HedraCAM robot welding process package supports arc welding, laser welding, and multi-robot collaborative welding. Intelligent trajectory generation technology enables efficient support from model import to program output.

🔧 Core Features

Intelligent Trajectory Generation

Topology-based intelligent selection tool - no need for point-by-point picking. Click on workpiece faces, edges, bodies, or wireframes to automatically generate welding trajectories and normals. Supports IGS/STP/STL CAD model import with direct extraction of point, line, and surface features.

Multiple Welding Types

Supports arc welding (linear, circular arc, and fillet welds), laser welding (high-precision contour welding for thin sheet panels), and complex spatial curve welding (automatic programming for 3D curves and intersecting lines).

Full-Dimensional Trajectory Optimization

Quick adjustment of torch position and path sequence; batch pose modification for multiple trajectories; smooth pose transition for continuous rotation during curved surface welding; automatic sorting by shortest path principle.

Multi-Device Collaborative Programming

Supports machine + robot collaborative offline programming; dual-robot synchronous welding (multi-head synchronous welding to increase productivity); one robot path can be executed by two different robots simultaneously.

Process Template Management

Provides welding process templates (current, voltage, speed parameters); user-defined parameters can be customized and exported; tabular management of welding parameters that can be loaded to welding points.

Collision Detection & Simulation

Simulate programmed paths with orange collision highlighting; real-time checking of robot reachability and axis limits; simulated paths can be color-coded to visualize welding path status.

🎬 Feature Showcase

📋 Intelligent Welding Process Planning

① Generate Initial Welding Path — Extract model features based on workpiece theoretical data to generate initial welding trajectory

② Welding Pose Adjustment — Plan path based on robot reachability; adjust point poses to eliminate unreachable or limit-exceeded states

③ Welding Parameter Setup — Tabular management of current, voltage, and speed parameters loaded to welding points

④ Process Simulation — Simulate programmed path with orange collision highlighting; modify poses to avoid obstacles

⑤ Post Processing Output — Output post-processed program and import to robot controller for execution

⑥ Weld Quality Inspection — Inspect weld seams and provide feedback on welding process parameters

⑦ Welding Knowledge Base — Form tabular welding data based on feedback parameters; adjust simulation path

⑧ Welding Closed Loop — Weld with new parameter path; progressively optimize quality to form closed-loop system

🏭 Applications

Auto Body Welding

Chassis Thick Plate

Aerospace Structures

H-Beam Welding

Steel Structure

Sheet Panel Welding

Complex Spatial Curves

Multi-Robot Sync

🏭 Case Studies

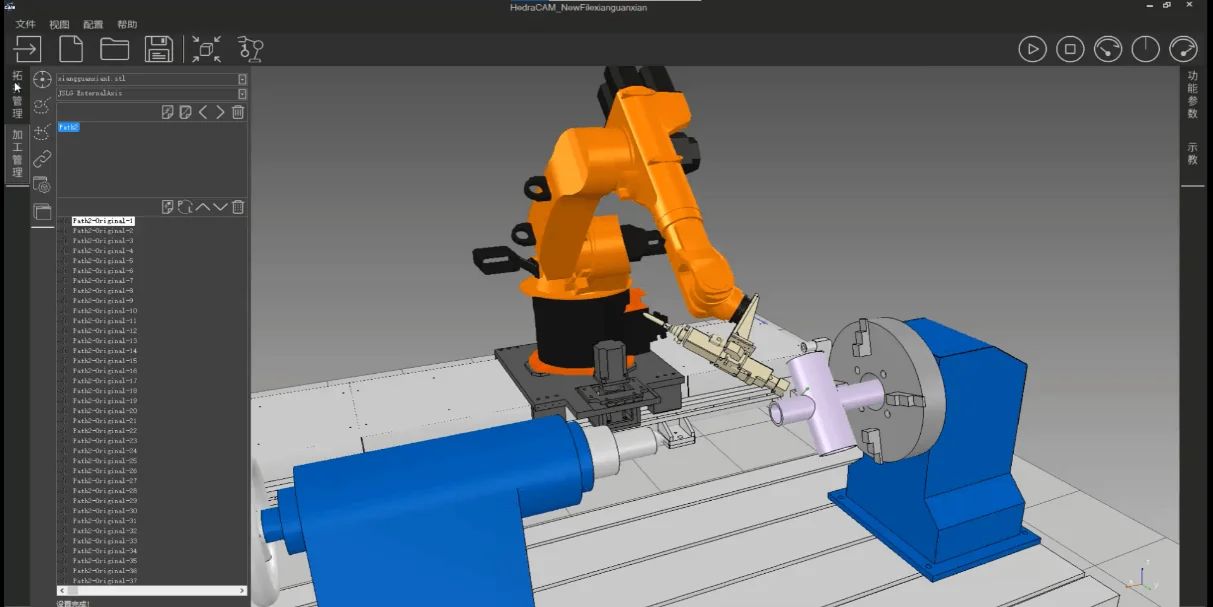

Intersecting Line Welding

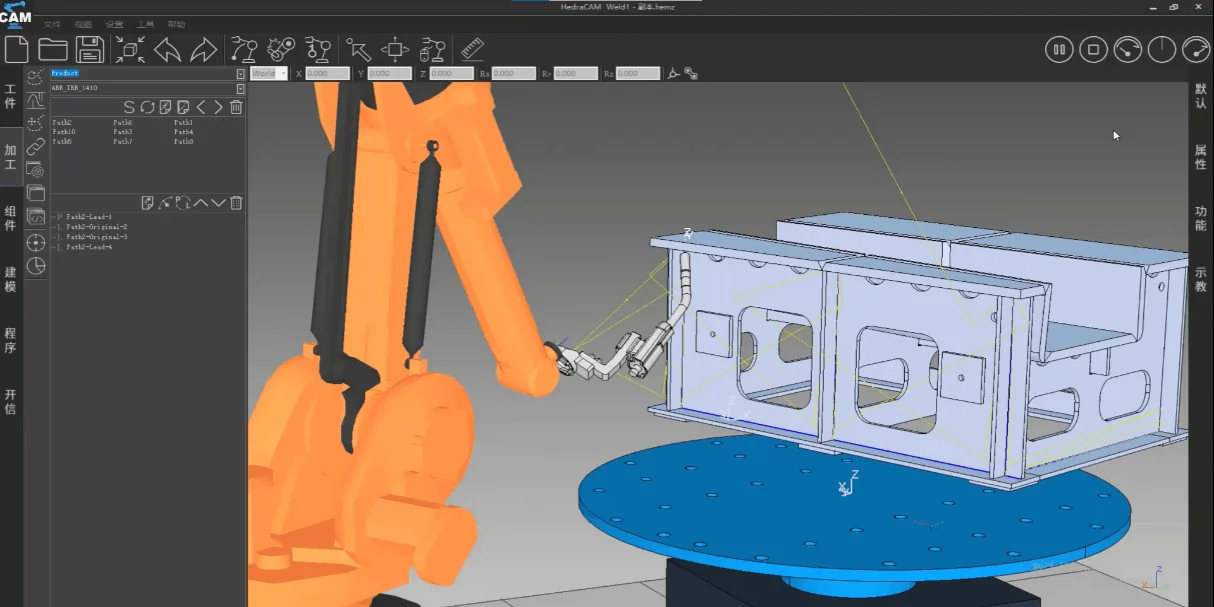

Aerospace TIG-MIG Composite Welding

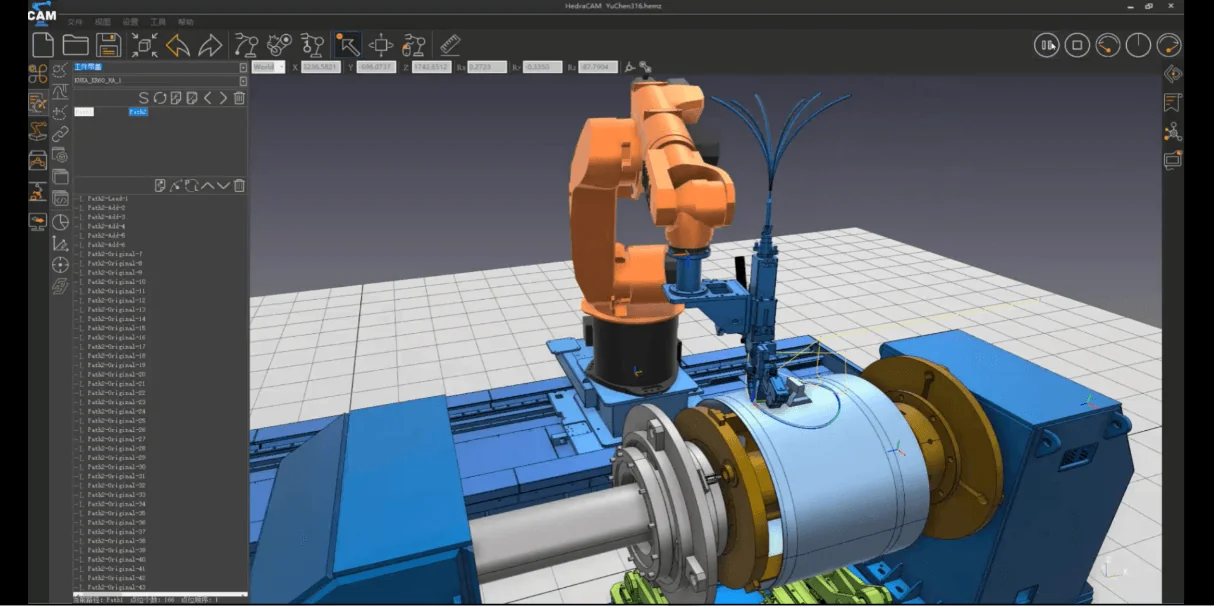

Aerospace Shell Laser Welding

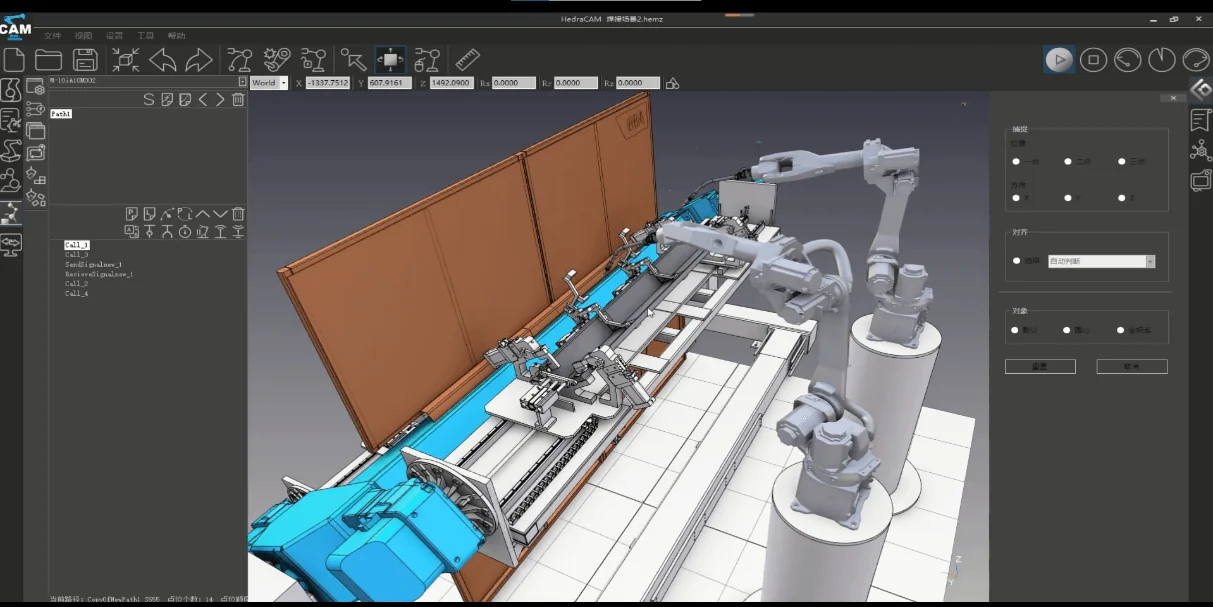

Dual-Robot Dual-Station Thick Plate Welding

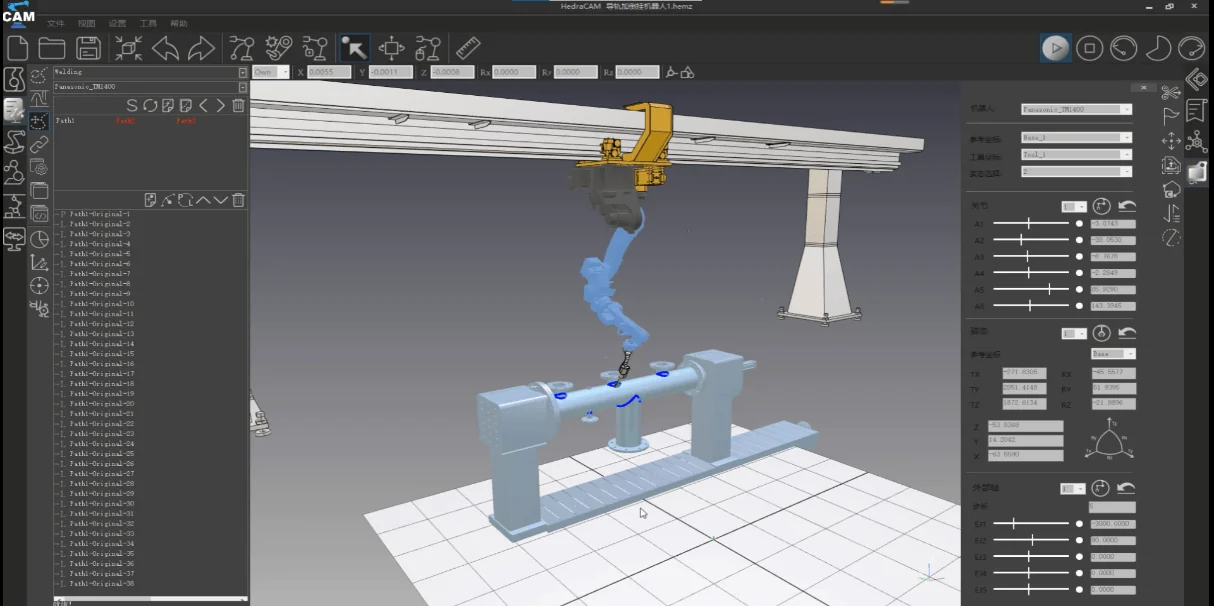

Oil Pipeline Multi-Layer Multi-Pass Welding

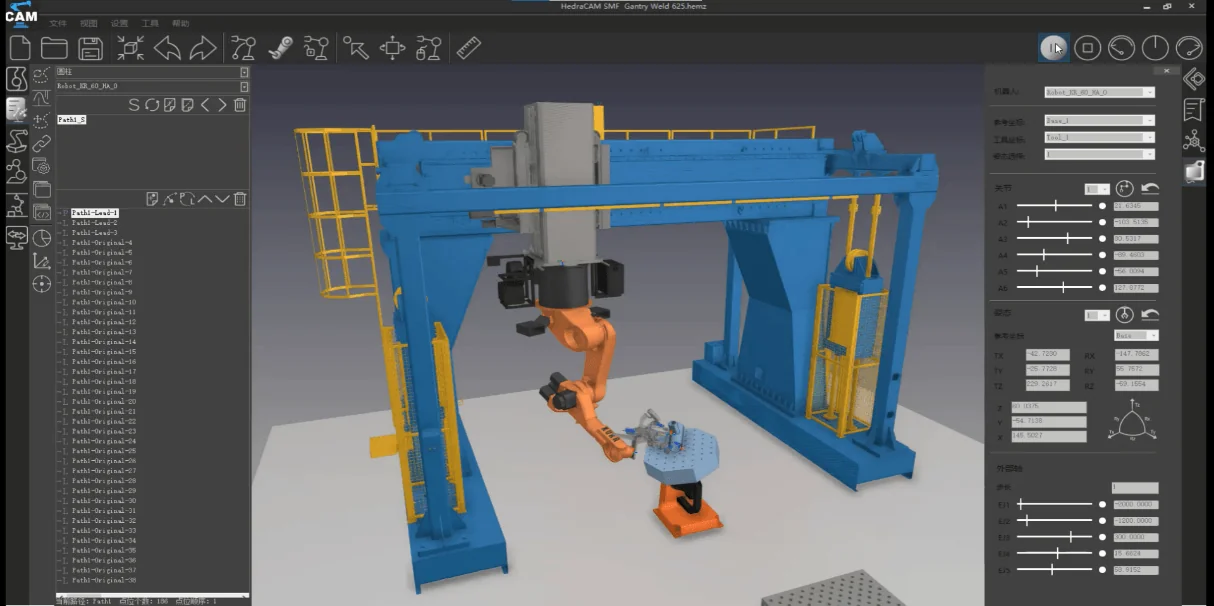

Gantry Welding

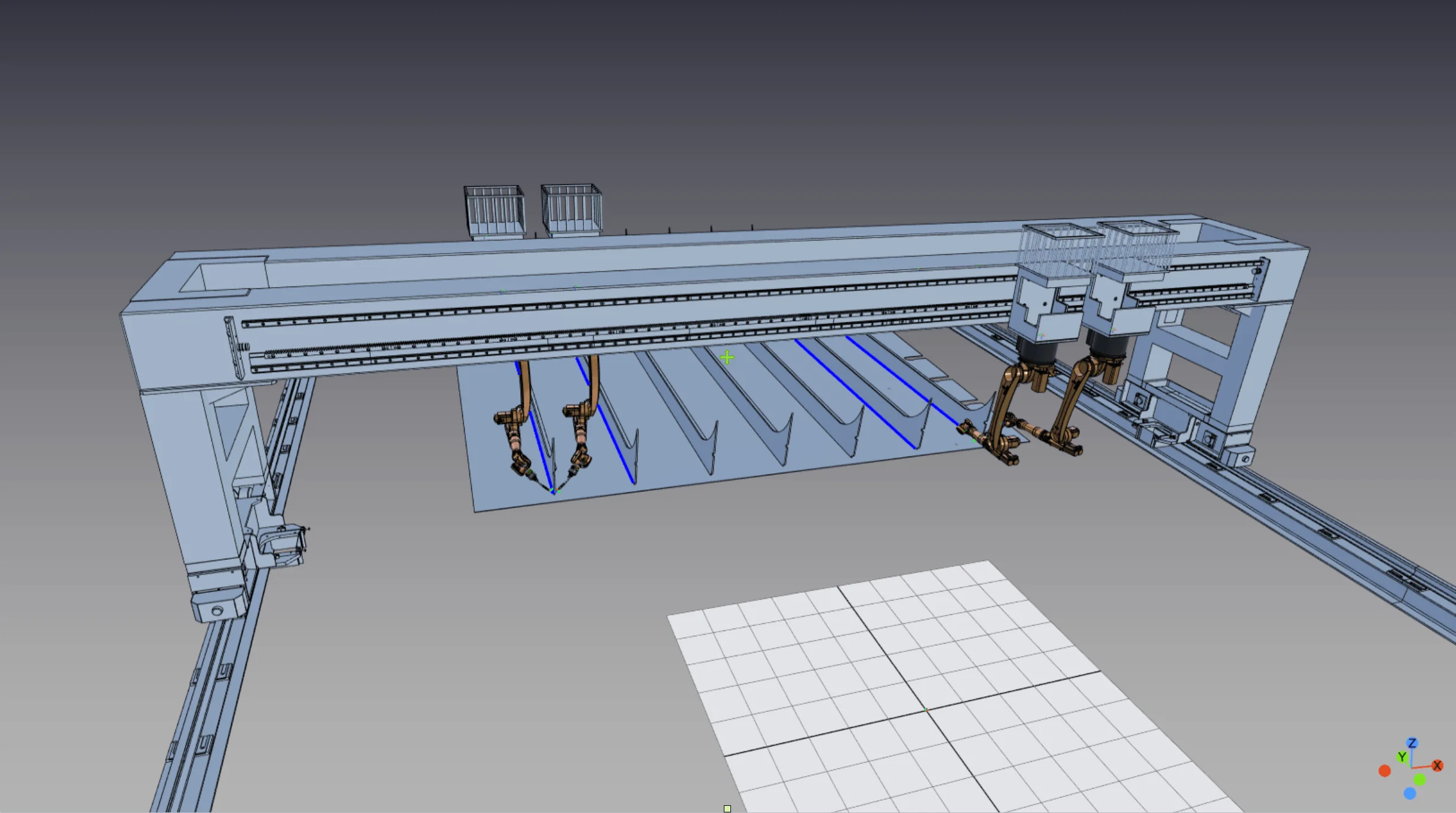

Shipbuilding Multi-Robot Collaborative Welding

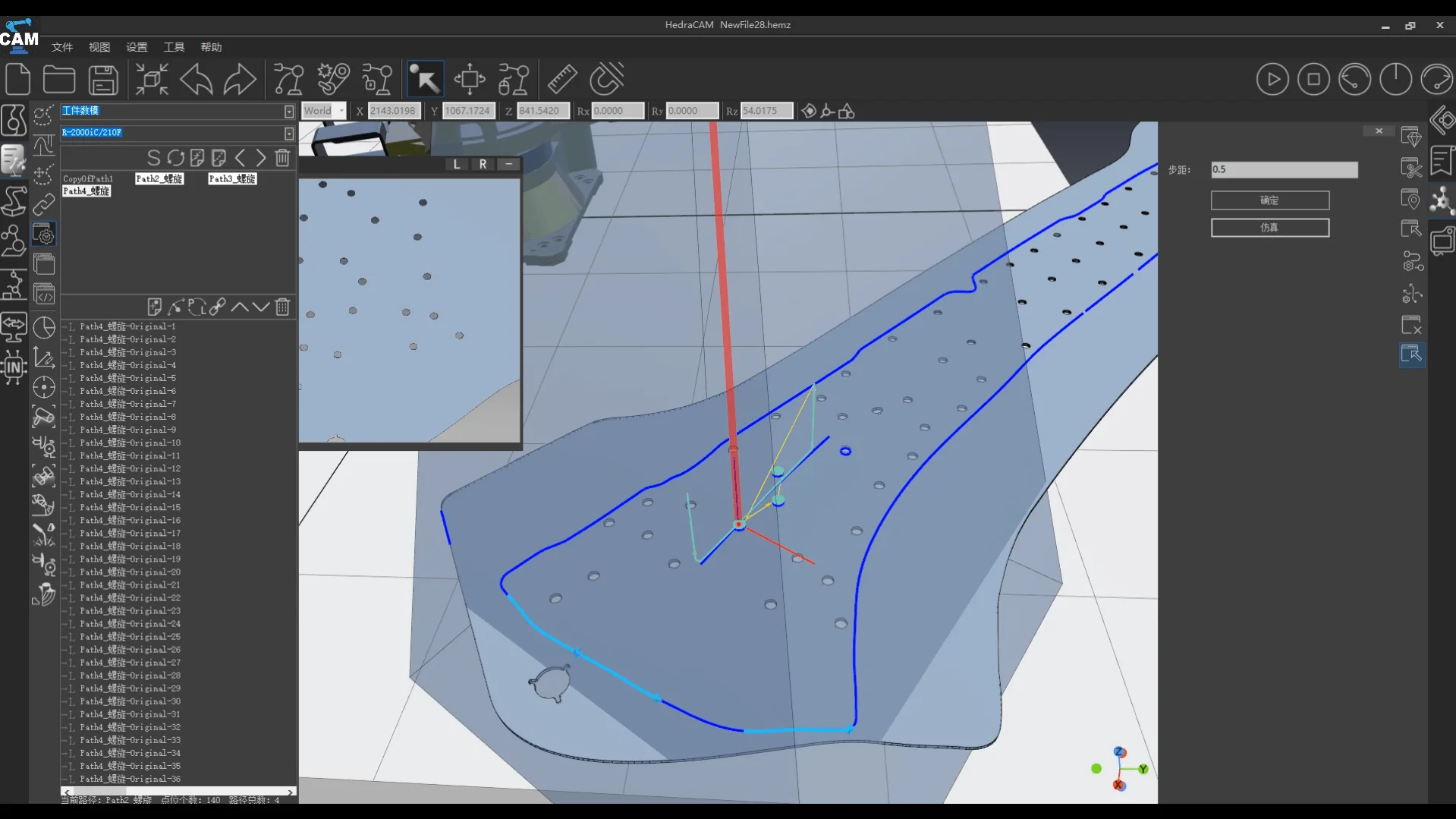

Body Galvanometer Flying Welding

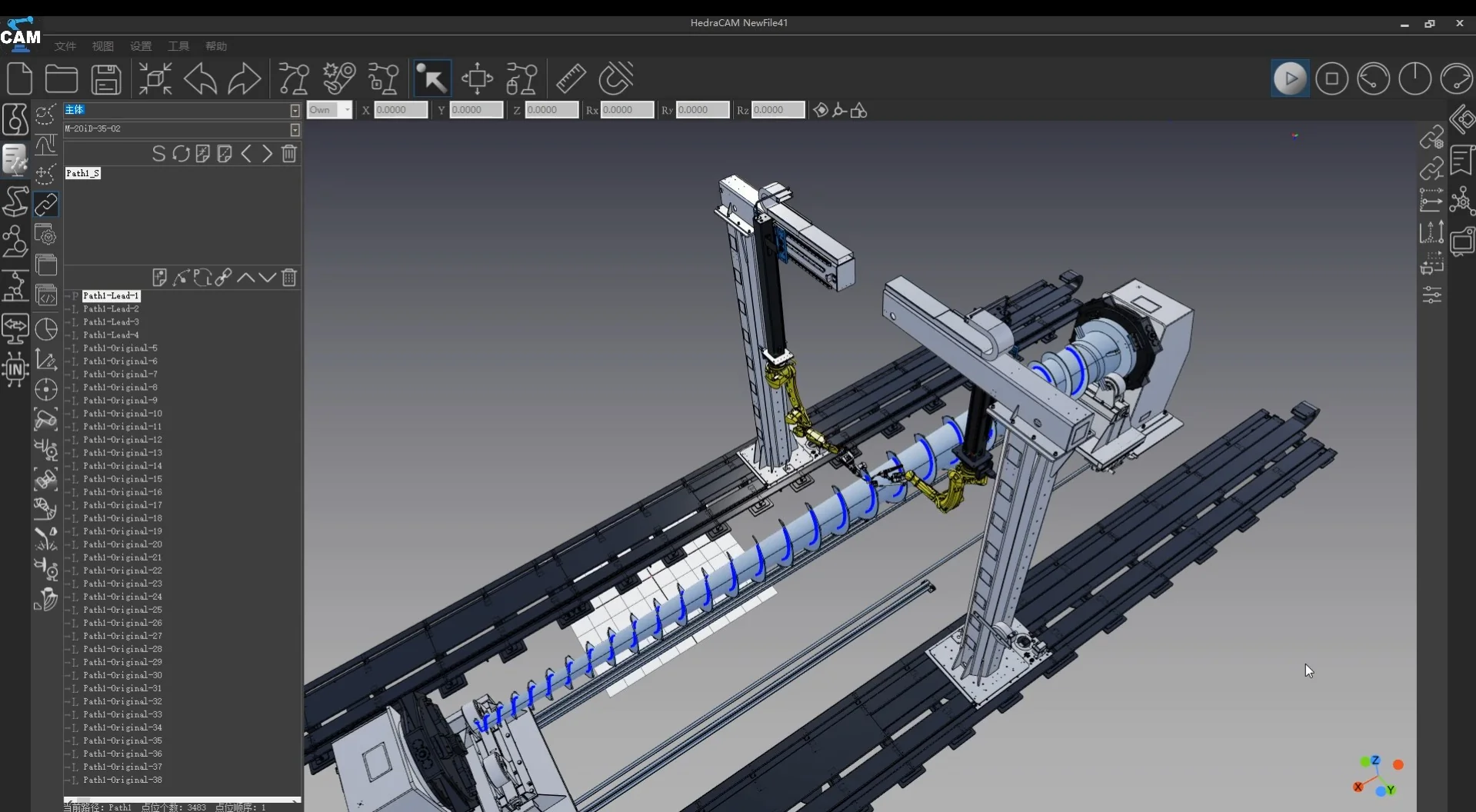

Agitator Screw 21-Axis Linkage Welding

🏆 Awards

Jiangsu Science and Technology First Prize

Jiangsu Province Science and Technology First Prize

HedraCAM welding process package provided robot offline programming technology for the large gantry dual-beam laser welding equipment project, and the project team won the 2021 Jiangsu Province Science and Technology First Prize.
