The HedraCAM Fixture Design Module is one of the featured components of HedraCAM software, integrated on the same platform, supporting fixture design for various processes including sheet metal cutting, tube cutting, dispensing, and punching.
01

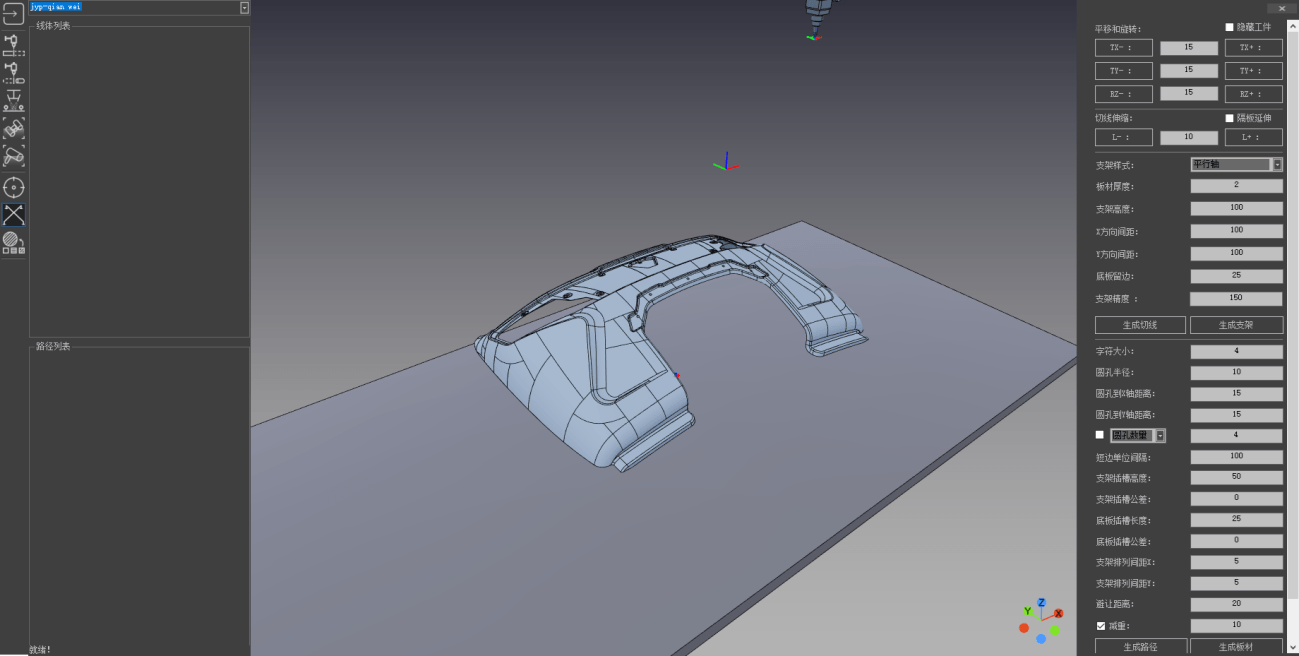

Parametric Auto-Generation One-click setup, intelligent generation
-
Multiple bracket stylesSupports parallel axis, diagonal and other bracket styles for flexible selection.
-
Key parameter settingsPlate thickness, bracket height, X/Y spacing, bottom margin, precision parameters.
-

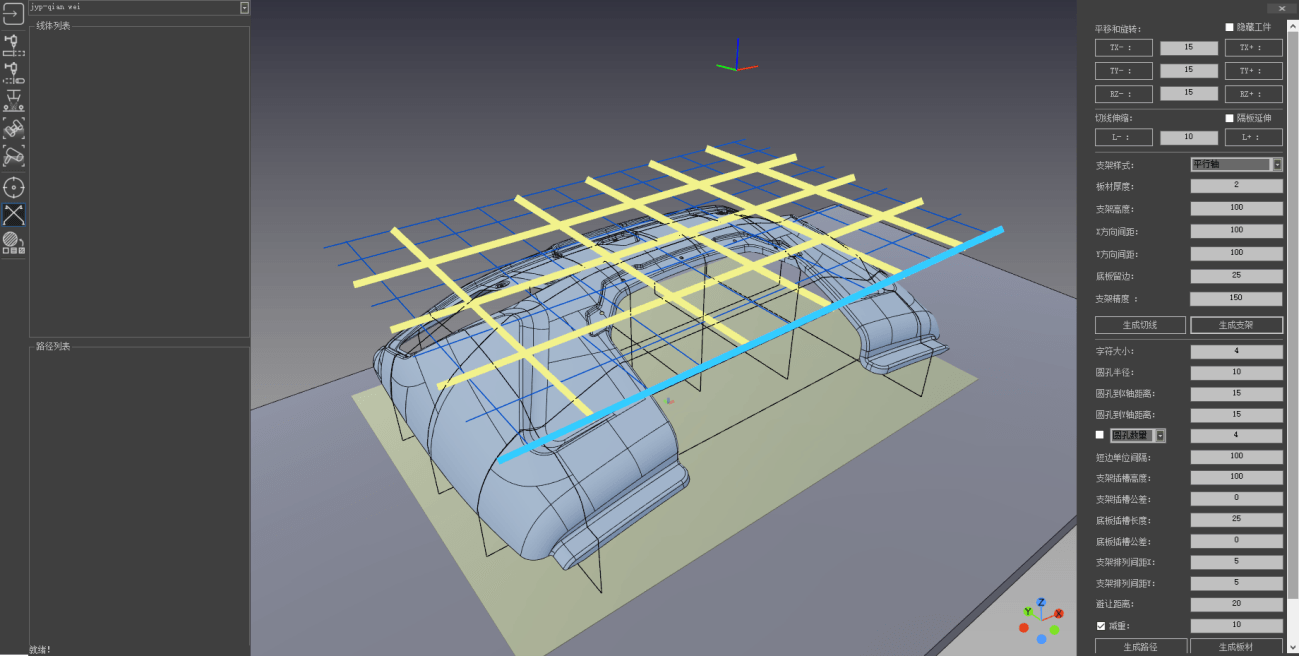

Auto-generate cut linesSystem automatically calculates and generates blue cut lines.
-
Instant previewReal-time preview after parameter adjustment, WYSIWYG.
02
Flexible Detail Adjustment Precision editing, accurate control
-
Multiple editing toolsTranslation, rotation, scaling tools for fine-tuning single or multiple cut lines.
-
Batch processingCtrl+left-click multi-select for efficient batch processing.
-
Bracket previewInstant preview after selecting cut lines and clicking "Generate bracket".
-
Real-time updateModel updates in real-time after parameter adjustment.
03
Rich Process Parameters Comprehensive fixture design coverage
-
Hole designRadius, X/Y distance, hole count, short-edge interval parameters.
-
Slot designBracket slot height/tolerance, base slot length/tolerance.
-
Arrangement & avoidanceX/Y spacing, avoidance distance, weight reduction parameters.
-
Precision assuranceAuto-set workbench reference holes, tolerance settings throughout.
04
Complete Workflow Seamless from design to machining
-
Three-step completionGenerate path ?Generate plate ?Create model.
-

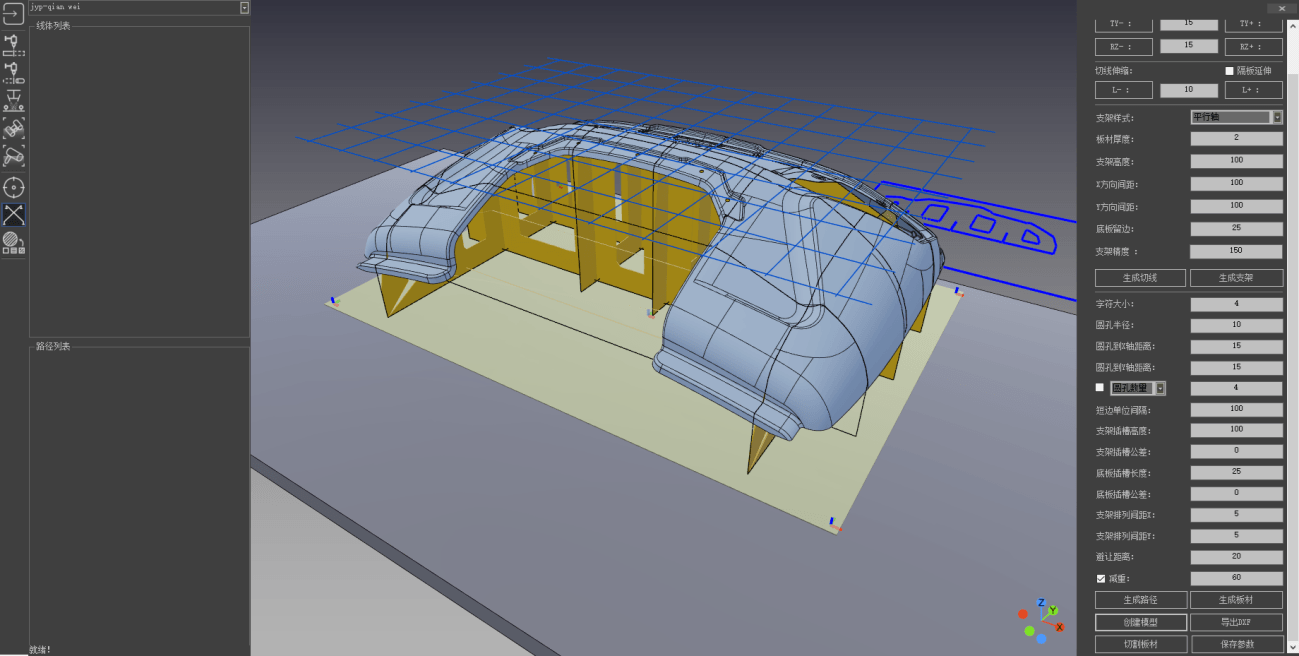

3D model verificationGenerate 3D solid model with visual verification.
-

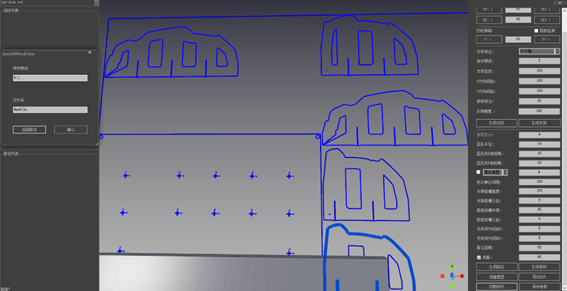

DXF exportExport DXF for direct connection to laser/plasma cutting machines.
-
Virtual-real positioningQuick positioning system with workbench and reference holes.
05
Deep Integration with OLP Design and simulation integration
-
Unified platformFixture design and robot/5-axis OLP on the same platform.
-
Auto-positioningWorkpiece auto-positioning after import.
-
Collision detectionSupports collision detection and path optimization.
-
Seamless connectionDesign to simulation verification without switching software.
Summary
HedraCAM Fixture Design Module provides an efficient, precise, and easy-to-use fixture design solution through five core advantages. Combined with HedraCAM Robot OLP/Pentacut modules, it significantly improves deployment efficiency and reduces commissioning costs.
