Digital Twin Module

The Digital Twin Module is one of HedraCAM's featured components, based on digital twin models, real-time simulation of industrial robot production line behavior and performance in real environments.

Back to Home

The Digital Twin Module is one of HedraCAM's featured components, based on digital twin models, real-time simulation of industrial robot production line behavior and performance in real environments.

01

Virtual-Real Interaction OPC UA real-time data sync

OPC UA Bidirectional Real-time Sync Node Pairing

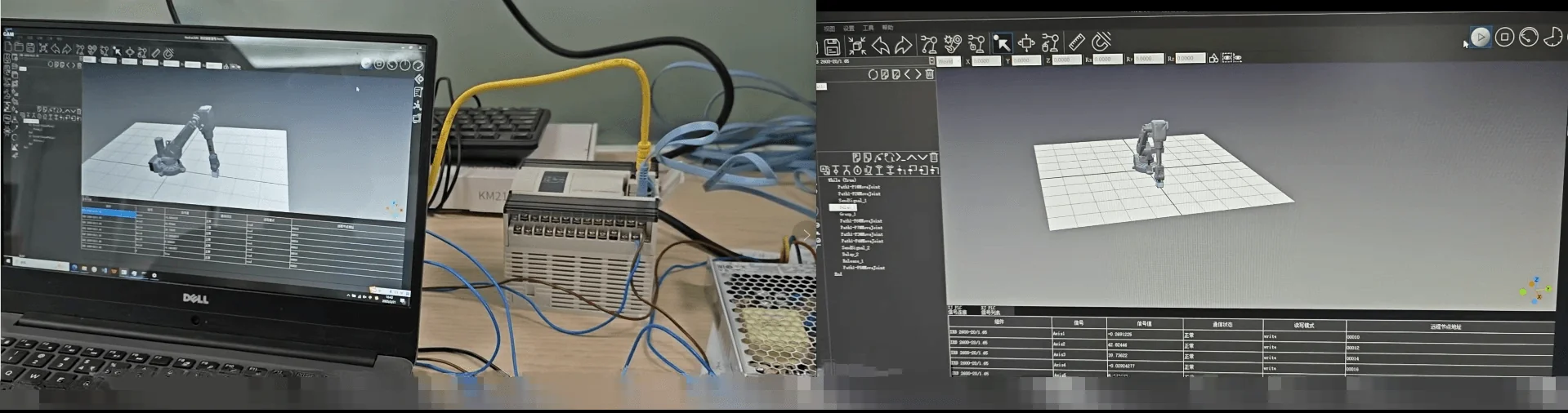

OPC UA Virtual-Real Bidirectional Interaction
02

Multi-level Production Line Modeling Quick 3D production line construction

  • Multi-level modeling
    Workshop, line, equipment layer support.
  • Multi-view
    Physical, process, operation, logistics views.
  • Component library
    Simulation component library for quick construction.
  • Multi-format import
    STEP, IGES, OBJ, STL, DXF format support.
Multi-level Multi-view Component Library Format Import

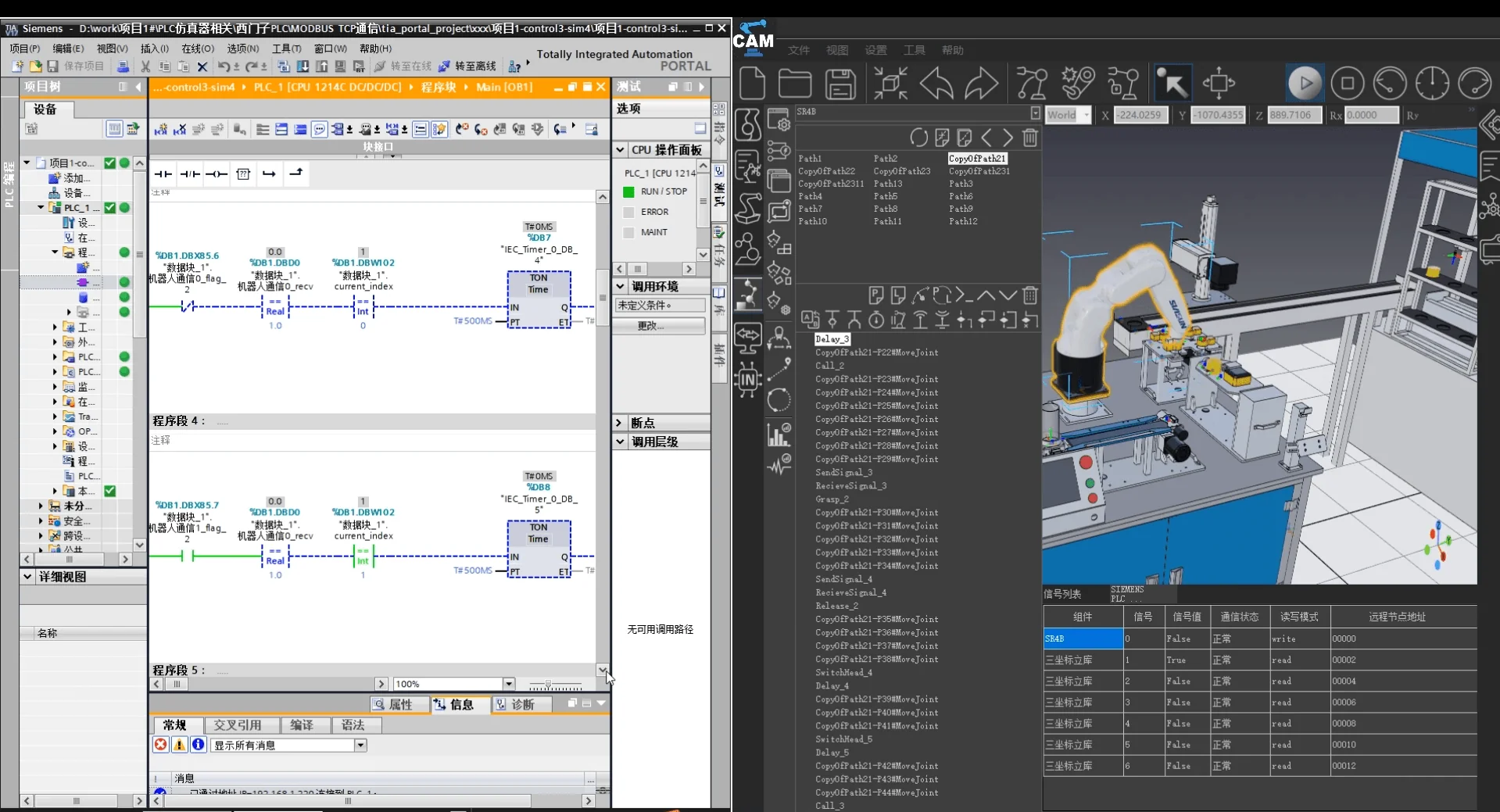

PLC Co-Simulation
03

Collision Detection & Motion Analysis Intelligent verification, precise analysis

  • Inverse kinematics
    Virtual robot inverse kinematics for operable scenes.
  • Reachability test
    Test joint reachability and collision range.
  • Interference check
    Auto-detect interference between robots and equipment.
  • Collaboration analysis
    Evaluate multi-robot collaboration capability.
Inverse Kinematics Reachability Interference Collaboration

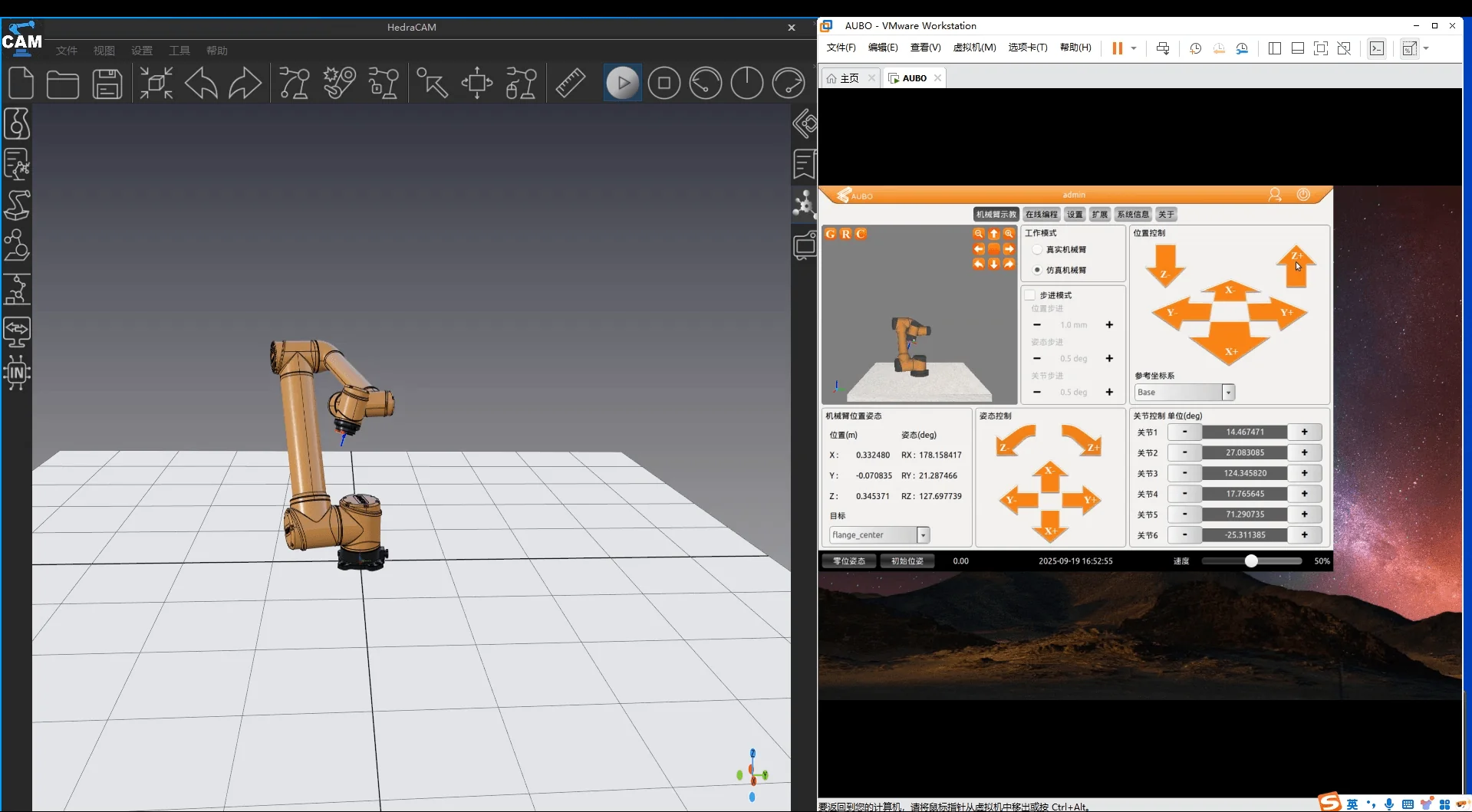

Robot Motion Simulation
04

Signal Monitoring & Cycle Visualization Data-driven, precise control

  • Signal list
    View all successfully paired variables with server.
  • Statistics chart
    Signal statistics histogram for trend visualization.
  • Cycle recording
    Record execution time and cycle for each action.
  • Excel export
    Export signal cycle data to Excel for analysis.
Signal Monitor Cycle Analysis Excel Export Visualization

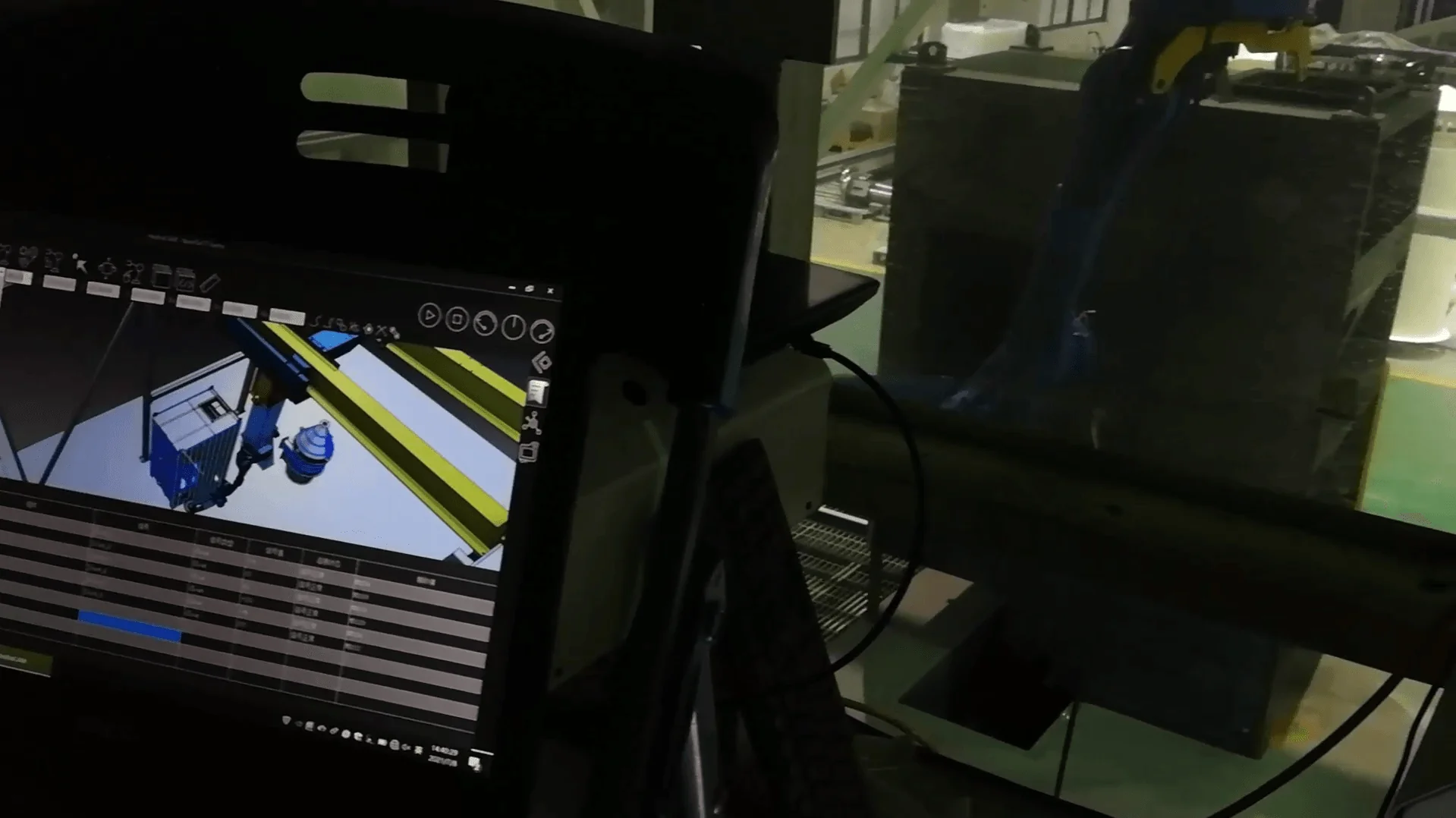

On-site Online Monitoring
05

Offline to Online Integration Seamless switch, efficient deployment

  • Offline simulation
    Layout import, 3D model splitting, component adjustment.
  • Program output
    Convert paths to trajectory points, output to real robots.
  • Online debugging
    Load online scene data, connect real equipment via OPC.
  • On-site deployment
    3D monitoring system online debugging.
Offline Simulation Online Debug Program Output Deployment

Summary

HedraCAM Digital Twin Module, with "virtual-real interconnection, data-driven, intelligent decision" as the core design concept, provides a complete smart manufacturing production line digital twin solution.
