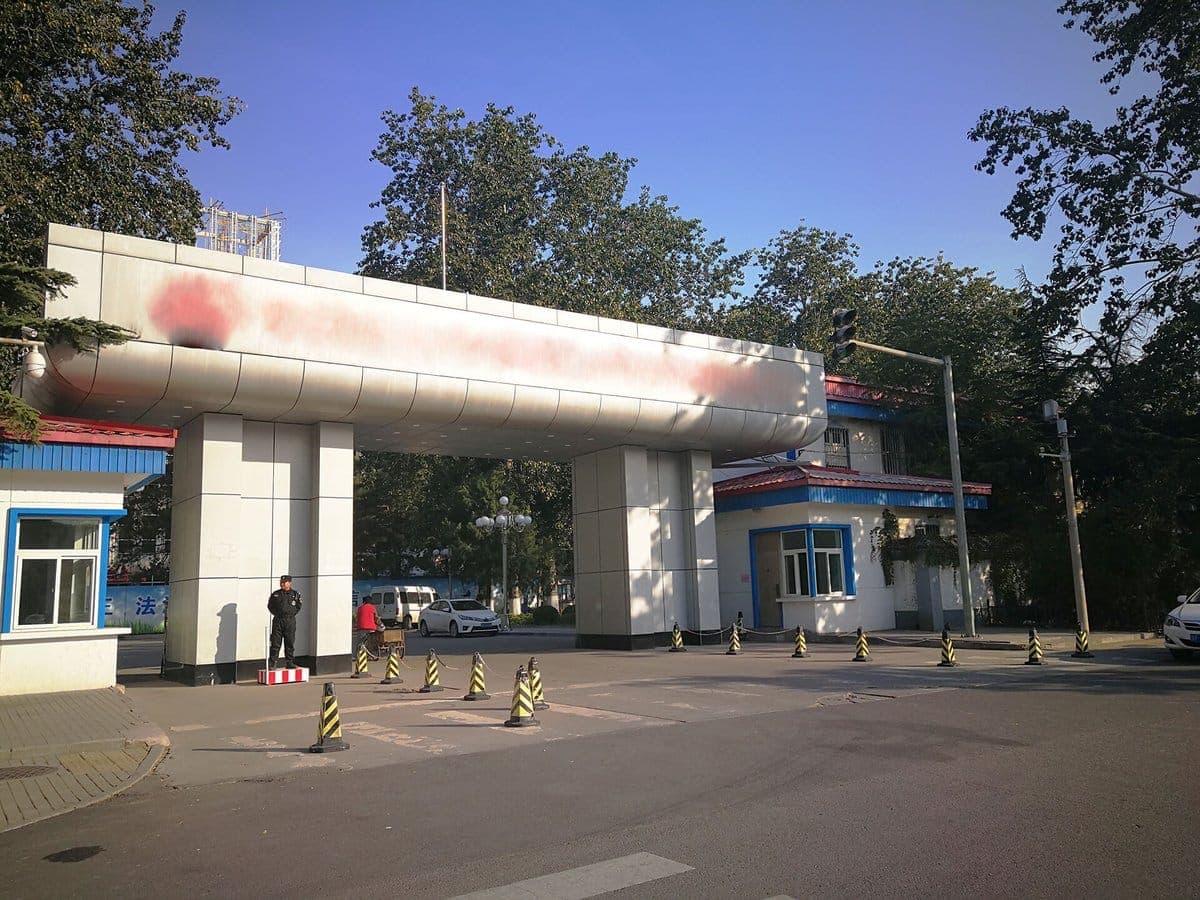

Customer Name: AVIC Beijing Aeronautical Manufacturing Technology Research Institute
Customer Introduction: Beijing Aeronautical Manufacturing Technology Research Institute (abbreviated as 625 Institute) was founded in July 1957. It is a comprehensive research institute specializing in advanced manufacturing technology research and special equipment development for aviation and national defense. It mainly conducts basic research, technical breakthroughs, and special equipment development centered on aviation weapon equipment manufacturing technology, and provides advanced manufacturing technology and process equipment.
User Case: Gantry 11-axis linkage robot welding process application: Titanium alloy TIG welding

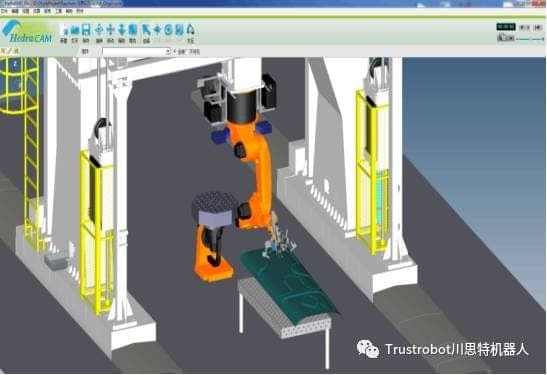

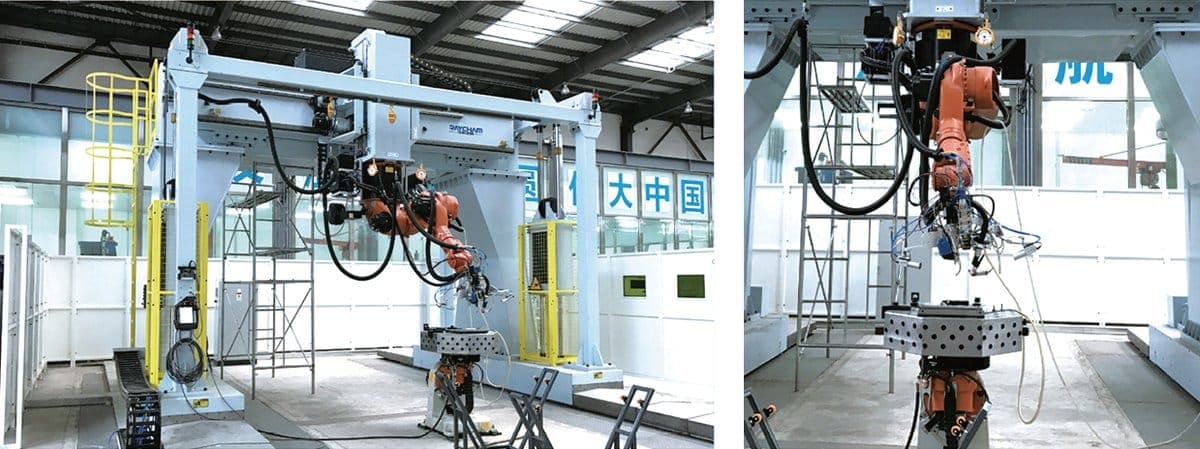

In June 2017, our company provided HedraCAM robot offline programming software for 625 Institute and provided professional training. The equipment trained this time was KUKA KR 60-HA six-joint robot 11-axis linkage system, including two external axes: slide (linear motion) and positioner (rotary motion).
Such complex multi-axis systems can no longer meet daily processing needs through manual teaching. 625 Institute processing personnel reported that they had used several robot programming software before with unsatisfactory results. After repeated research, they chose our HedraCAM robot offline programming software. Quick offline programming for multi-external-axis robot processing units is one of our software's advantages. HedraCAM has a large and complete model library, supporting most known robots and corresponding external axes.
The software uses DIY customization, allowing users to customize corresponding Layout layouts for different units. 625 Institute's robot equipment is mainly used for TIG welding of titanium alloy plates. The plate weld trajectories are complex and require high precision. General manual teaching programming cannot meet the requirements. HedraCAM truly achieves the ability to obtain ideal robot processing programs by simply inputting existing digital models and clicking the mouse to select corresponding processing contours, greatly simplifying and shortening preparation time before processing and improving processing efficiency.
HedraCAM is simple and easy to use, with a fully Chinese interface and low learning threshold. Ordinary processing personnel can quickly master the method, truly making robot processing simple and easy to use. 625 Institute engineers in training praised our company's products, unanimously believing that compared with foreign robot offline programming software, HedraCAM is easy to learn and use without being cumbersome. Its topology algorithm for reading digital models is relatively advanced, very suitable for China's current application environment. Customer recognition and praise also motivate us to make HedraCAM more perfect and easy to use. Our goal is to let more users like 625 Institute use domestic high-level robot offline programming systems.
Product Features:
1. Simulation Engine: By using virtual reality technology, users can import digital models in the work unit environment, perform offline programming, and then conduct simulation and conflict detection.
2. Robot Library: Supports all robots of more than 30 mainstream robot brands on the market. Models have complete motion algorithm control and parameterization, capable of simulating robot joint motion and working with different brand robots.
3. Offline Programming: Can quickly generate robot motion trajectory programs. The software outputs motion trajectories and process attributes and corresponding process instructions to the program. It can also upload programs from actual equipment in reverse for calling trajectory points or further optimization.
About Us: "Our independently developed new generation robot production line virtual simulation and offline programming software HedraCAM has usability far exceeding similar foreign software." - Gao Yu, Technical Support Engineer
